CAT5e Networking Cables
PC Cable World CAT5e cables are designed to connect network adapters, hubs, patch panels, switches, routers, DSL/Cable modems and other 10/100/1000 BASE-T (IEEE 802.3) applications.
CAT5e Shielded (F/UTP) Cable
-
Category 5E 4-Pair F/UTP Stranded Shielded Copper Network Cable 26 AWG
-
Use for voice, data, video distribution, and security applications requiring shielding
-
Molded, snag-less boot prevents unwanted cable snags during installation and provides extra strain relief
-
Shielded with aluminum polyester tape and drain wire to protect data signal integrity from EMI/RFI
-
Ethernet 1000 BASE-T; 100 BASE-TX; 10 BASE-T (IEEE 802.3)
-
Meets and/or Exceeds Cat5e EIA/TIA 568 C.2-1
-
Enhanced 350MHz bandwidth for intensive applications
-
50 micron gold-plated copper alloy contact, shielded RJ45 8P8C modular plug
-
UL CM & CSA CMG Certification
-
FT4 rating for in-wall use
-
Available colour:
SKU
Length
SKU
Length
PP-701
1.5'
PP-725
25'
PP-703
3'
PP-750
50'
PP-706
6'
PP-775
75'
PP-710
10'
PP-7100
100'
PP-715
15'
![](https://static.wixstatic.com/media/03a5b8_c5a8191764f0419bbf75d223a0787e56~mv2.jpeg/v1/fill/w_980,h_980,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/03a5b8_c5a8191764f0419bbf75d223a0787e56~mv2.jpeg)
![](https://static.wixstatic.com/media/03a5b8_00c4b181c576462f98bde487a8d811f3~mv2.png/v1/fill/w_460,h_460,al_c,q_85,enc_auto/03a5b8_00c4b181c576462f98bde487a8d811f3~mv2.png)
SKU
Length
SKU
Length
PG-005
0.5'
PG-25
25'
PG-001
1'
PG-330
30' (Grey only)
PG-01
1.5'
PG-335
35' (Grey only)
PG-3
3'
PG-340
40' (Grey only)
PG-5
5'
PG-50
50'
PG-6
6'
PG-75
75'
PG-10
10'
PG-100
100'
PG-15
15'
PG-150
150' (Grey only)
PG-20
20'
CAT5e Stranded (UTP) Cable
-
Category 5E 4-Pair UTP Stranded Copper Network Cable 24 AWG
-
Use for voice, data, video distribution, and security applications
-
Molded, snag-less boot prevents unwanted cable snags during installation and provides extra strain relief
-
Ethernet 1000 BASE-T; 100 BASE-TX; 10 BASE-T (IEEE 802.3)
-
Meets and/or Exceeds Cat5e EIA/TIA 568 C.2-1
-
Enhanced 350MHz bandwidth for intensive applications
-
50 micron gold-plated copper alloy contact, RJ45 8P8C modular plug
-
UL CM & CSA CMG Certification
-
FT4 rating for in-wall use
-
Available colours:
![](https://static.wixstatic.com/media/03a5b8_3d18413a20824a289f7f9913f6a8a2d2~mv2.jpeg/v1/fill/w_980,h_980,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/03a5b8_3d18413a20824a289f7f9913f6a8a2d2~mv2.jpeg)
![](https://static.wixstatic.com/media/03a5b8_9efbd6238f6a43f5a7573f714a96258b~mv2.png/v1/fill/w_460,h_460,al_c,q_85,enc_auto/03a5b8_9efbd6238f6a43f5a7573f714a96258b~mv2.png)
Solid Core
-
Better signal characteristics
-
Easier to crimp
-
Less flexible
![](https://static.wixstatic.com/media/03a5b8_222b1078d4ca40e68942dbfc9e70d319~mv2.png/v1/fill/w_300,h_300,al_c,q_85,enc_auto/03a5b8_222b1078d4ca40e68942dbfc9e70d319~mv2.png)
Industrial Standards
-
Meets and/or Exceeds EIA/TIA 568 C.2 Category 5 Enhanced
-
UL CM & CSA CMG Certification
-
ISO/IEC 11801
-
NEMA WC 63.1
-
prEN 50173
Product Electrical Characteristics
-
Impedance:100±15Ω
-
Mutual Capacitance max. nf/1000ft: 17.1
-
DC Resistance max. Ω/1000ft: 28.6
-
Propagation Delay Skew: 45ns/100m
Stranded Core
-
More durable
-
Harder to crimp
-
Quite flexible
![](https://static.wixstatic.com/media/03a5b8_f5b2ab1738c44f569819e20f3197ed69~mv2.png/v1/fill/w_300,h_300,al_c,q_85,enc_auto/03a5b8_f5b2ab1738c44f569819e20f3197ed69~mv2.png)

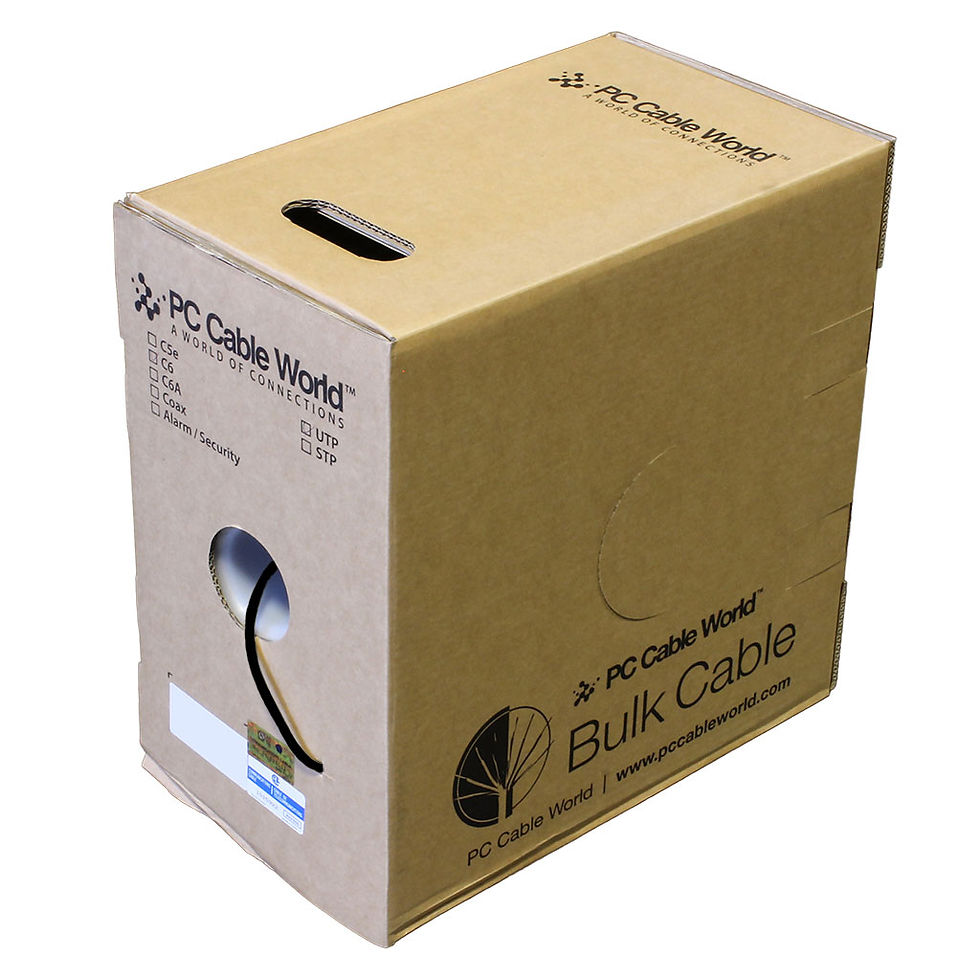

CAT5e Bulk (1000') Cable
CAT5e 1000' Bulk Cables
SKU
Type
UTP or F/UTP
Use
Fire Rating
AWG
Download (PDF)
